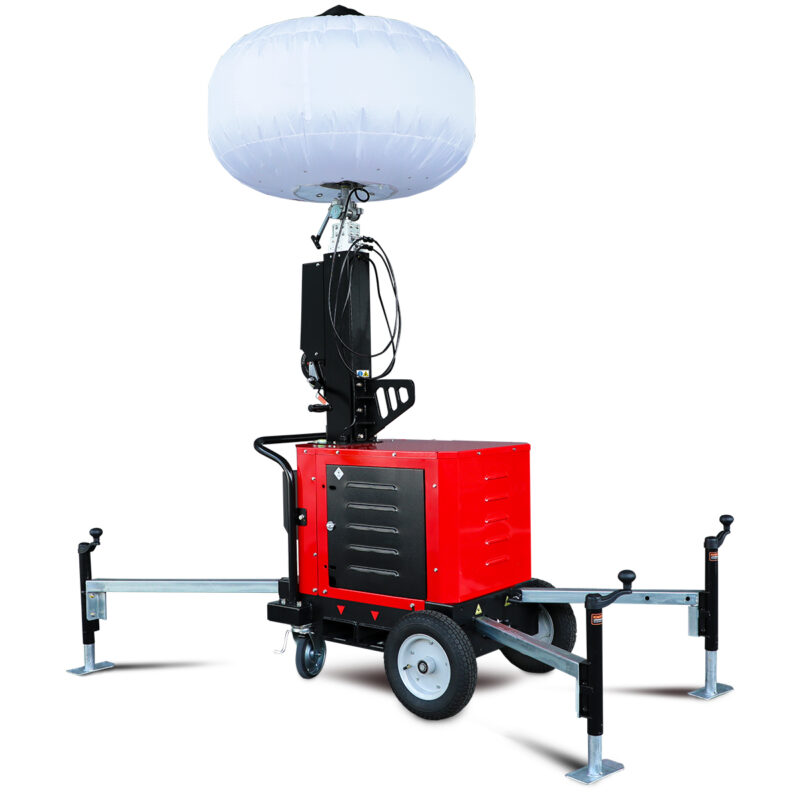

B8CM-CE

Height: 6.4m

Floodlights: 800W LED Balloon

Mast: Telescopic Aluminum Mast

B8CM inlate in a few seconds providing optimum Glare-Free lighting.

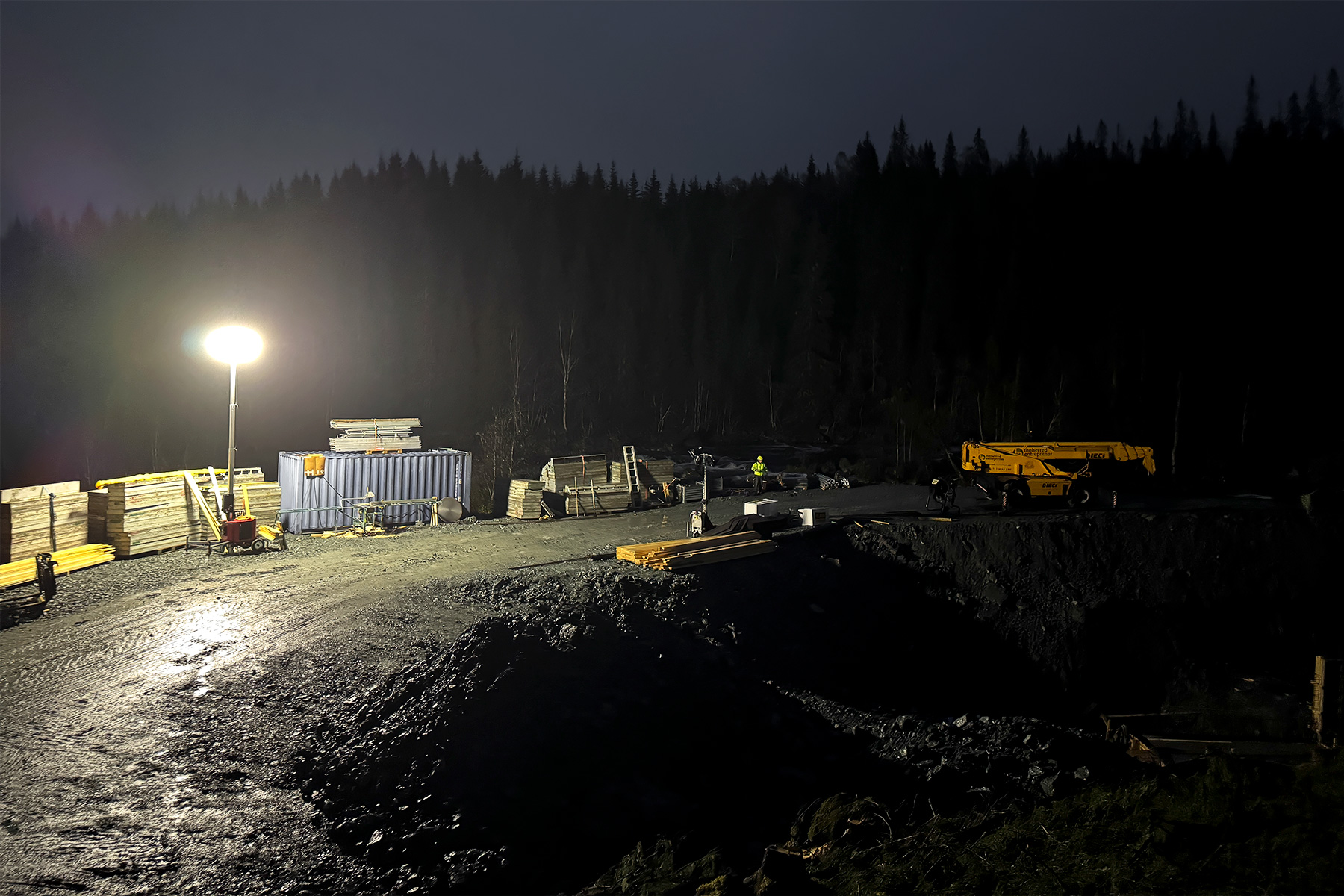

Prioritizing the safety of workers,drivers, and pedestrians, the design maximizes visibility within its range, minimizing the risk of accidents and incidents.Designed to withstand harsh construction site conditions, this balloon lamp is built to be robust. It combines durable materials and a sturdy design to provide exceptional resistance to vibrations and impacts. It delivers reliable lighting in any situation.

No compromises on Brightness and Safety

LIGHT BOY LED LIGHTING SYSTEM

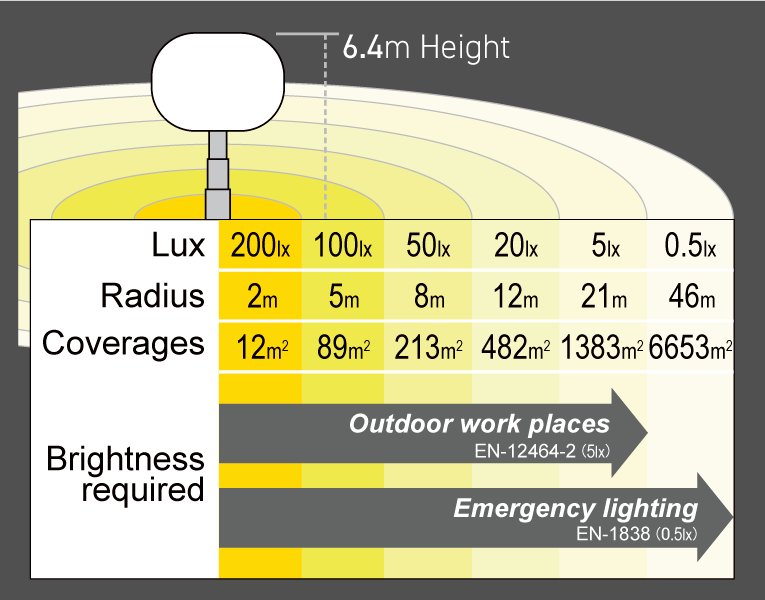

Exceptional 110,000 lumen output

Compact body, but provides wider and farther illumination range.
It effortlessly pierces through the darkness, casting its radiance on far-off places in an instant.

Large-Capacity Cover

Lockable cover for tool boxs, cables, etc,,

Removable Cover

It takes 1 min to remove the front cover with tools.
Various sizes of generators can be mounted.

No puncture tires with 2 casters

6 meter’s height with Aluminum Mast

Multi-sectional aluminum vertical mast for strength and corrosion resistance.

Safety Lock Mast

Applied for sudden descent in case of emmergency.

Double-Handed Winch

Optimized for raising and lowering the mast manually.

Easy Jack Stabilizers

Can be extended and set up in seconds.

Specification

ModelB8CM-CE
Voltage (V)AC90~240
Frequency (Hz)50/60
Wattage (W)860
LampTypeLED 800W x 1
Dimming Control800W/600W/400W
Total Luminous Flux (lm) 110,000 / 90,000 / 67,000
Temperature (℃)-10~40
MastMast TypeTelescopic Aluminum Mast
Mast OperatingHand Operation
CartTireFront tires: Outer diameter 380mm solid x 2
Caster tires: Outer diameter 200mm solid x 2
BrakeRear 2 wheel caster brake
OutriggerFront and rear drawer type x 4
Dimension1st Level (LxWxH) (mm)2350x1570x2100-6400
Storage (LxWxH) (mm)Balloon1177x777x2100
Plug typeIEC60309 230V 16A-6h-2P+E
Total Weight(kg)248
Appropriate GeneratorOutput 0.9kVA or more

Notice: Features and equipment specifications are subject to change without notice.

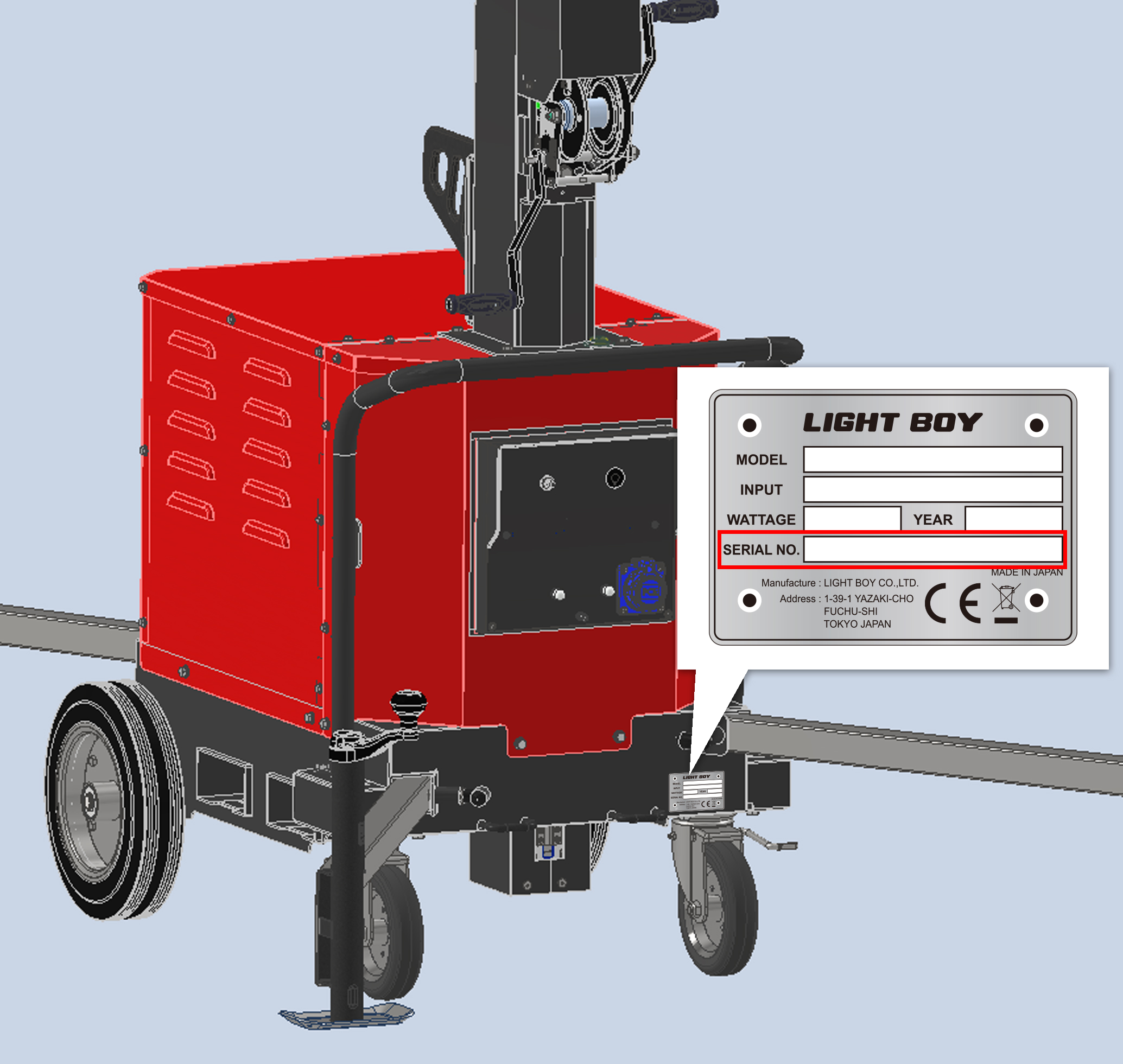

Serial No : E3000001 – E3000005

Serial No : E3000006  and above
