S3X4CM-CE

Height: 6.1m

Floodlights: 4 x 300W LED Spot

Mast: Telescopic Aluminum Mast

S3X4CM is a compact body but provides exceptional 212,000 lumen output. 300w LED lamp each.
It effortlessly pierces through the darkness, casting its radiance on far-off places in an instant. LED lamps are protected by a durable polycarbonate cover, built for construction sites. With 2 no-puncture tires and 2 casters, these four wheels provide excellent manueverability.

THE BRIGHTEST in class

LIGHT BOY LED LIGHTING SYSTEM

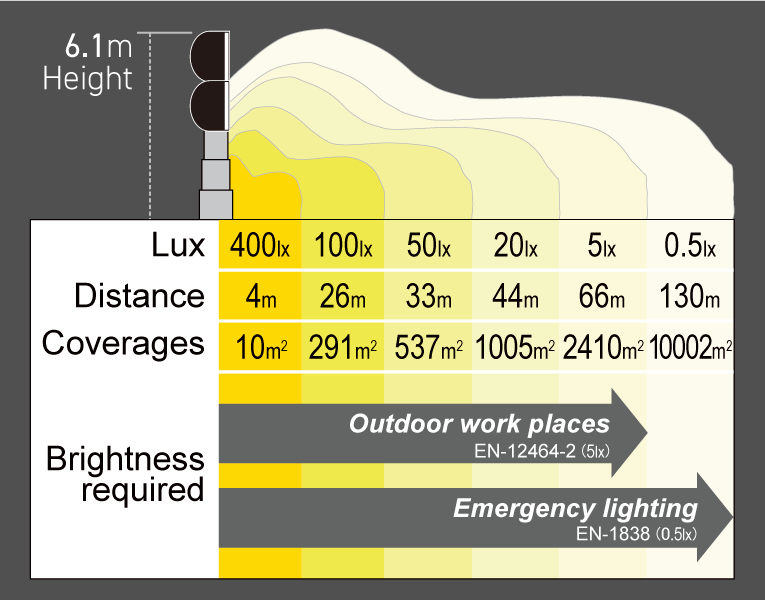

Exceptional 212,000 lumen output

Compact body, but provides wider and farther illumination range.
It effortlessly pierces through the darkness, casting its radiance on far-off places in an instant.

Large-Capacity Cover

Lockable cover for tool boxs, cables, etc,,

Removable Cover

It takes 1 min to remove the front cover with tools.
Various sizes of generators can be mounted.

No puncture tires with 2 casters

6 meter’s height with Aluminum Mast

Multi-sectional aluminum vertical mast for strength and corrosion resistance.

Safety Lock Mast

Applied for sudden descent in case of emmergency.

Double-Handed Winch

Optimized for raising and lowering the mast manually.

Easy Jack Stabilizers

Can be extended and set up in seconds.

Specification

Model			S3X4CM-CE
Voltage (V)			AC90~240
Frequency (Hz)			50/60
Wattage (W)			1350
Lamp	Type		LED 300W x 4
	Dimming Control		1200W/600W
	Total Luminous Flux (lm)		212,000
	Temperature (℃)		-10~40
Mast	Mast Type		Telescopic Aluminum Mast
	Mast Operating		Hand Operation
Cart	Tire		Front tires: Outer diameter 380mm solid x 2 Caster tires: Outer diameter 200mm solid x 2
	Brake		Rear 2 wheel caster brake
	Outrigger		Front and rear drawer type x 4
Dimension	1st Level (LxWxH) (mm)		2350x1570x2325-6100
	Storage (LxWxH) (mm)	Balloon	1177x1060x2040
Plug type			IEC60309 230V 16A-6h-2P+E
Total Weight(kg)			272
Appropriate Generator			Output 1.5kVA or more
