The perfect platform to safely and easily secure a
selected portable generators.
B8CA

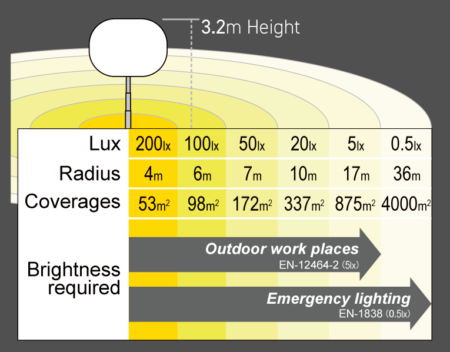

Height: 3.2m
Floodlights: 800W LED Balloon
Mast: Telescopic Aluminum Mast

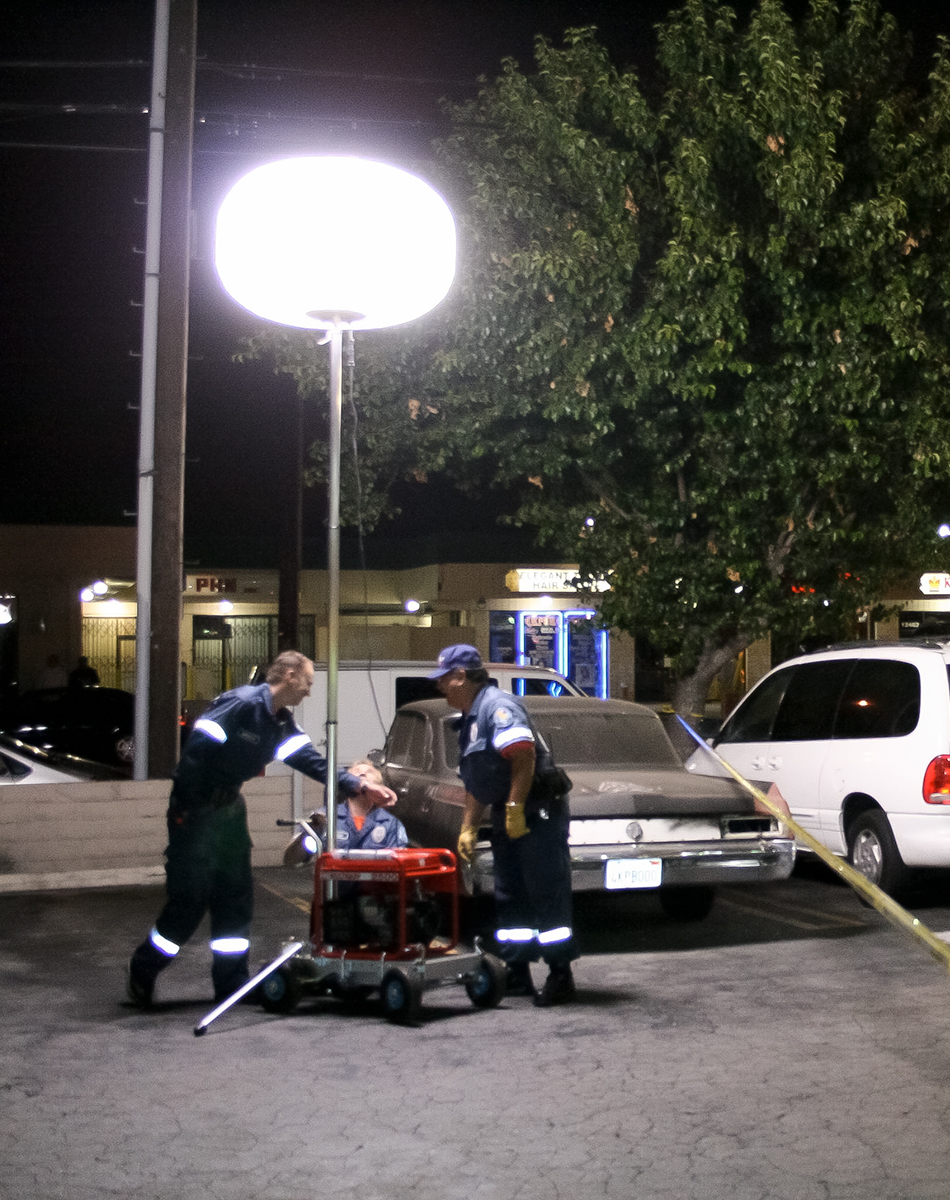

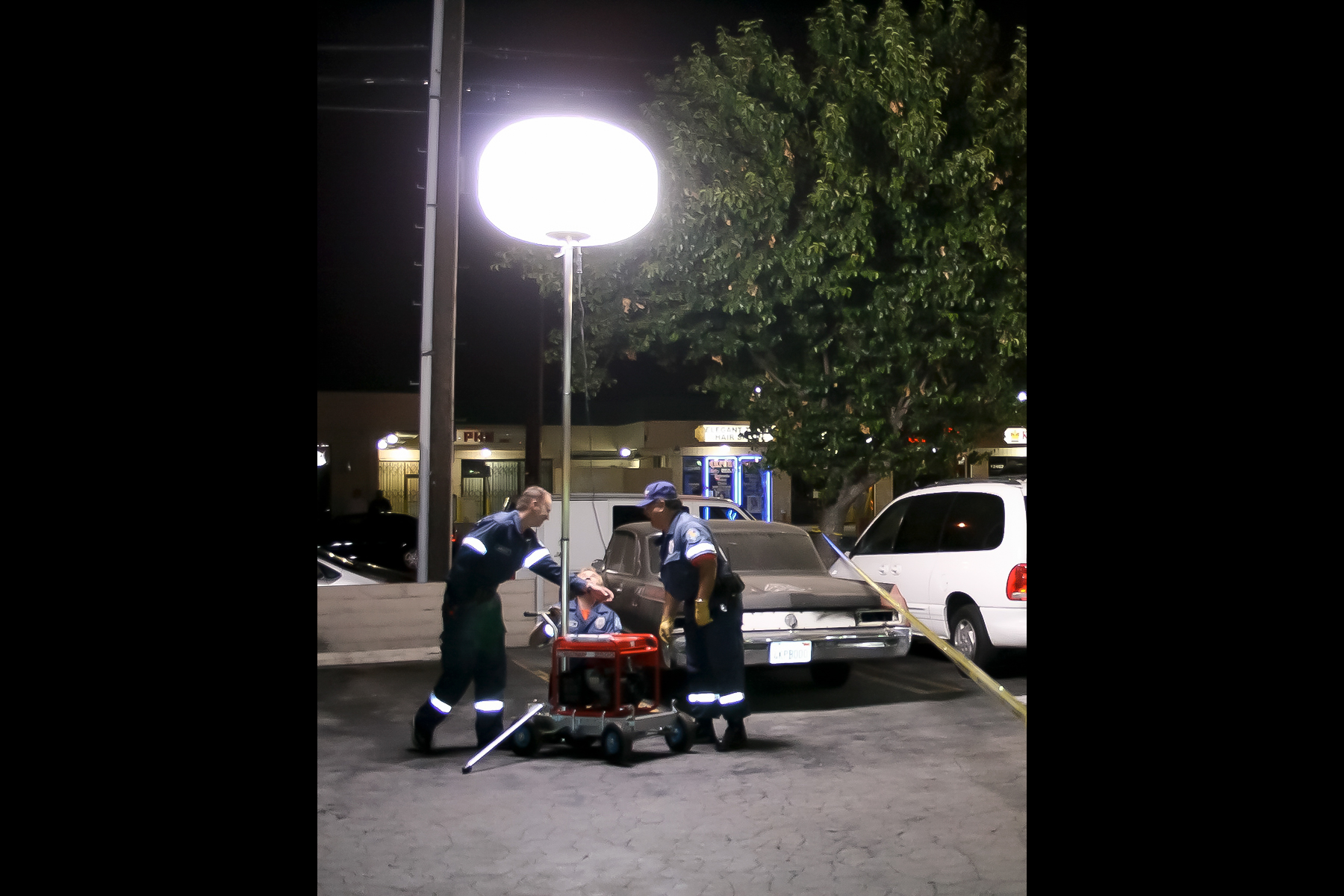

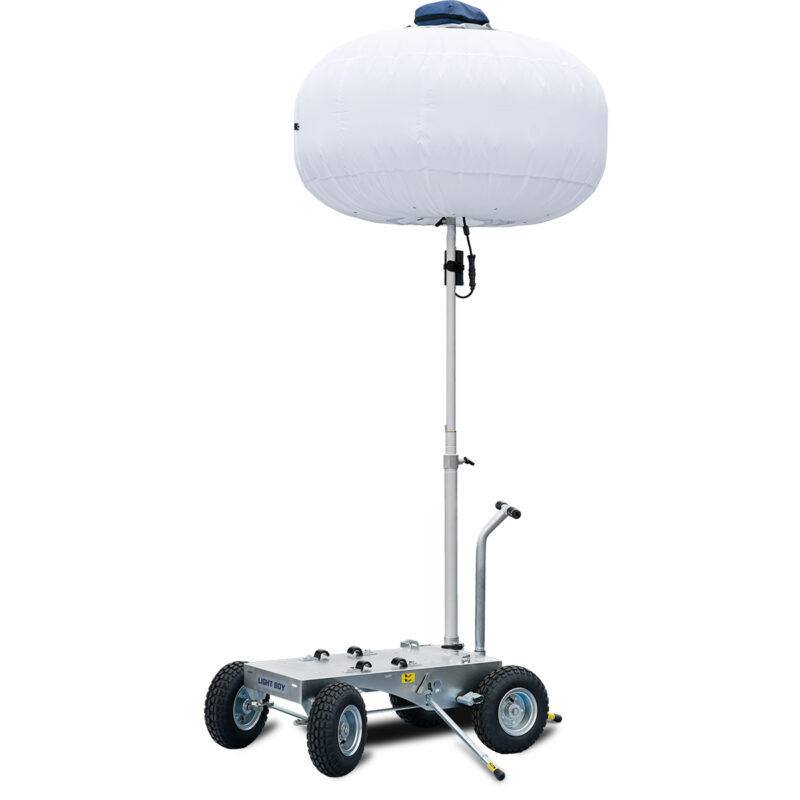

The ideal combinaion of the innovative B8CA supported by an industrial grade cart for easy transportation and operational flexibility! The Steerable cart sets up without tools, includes a 3-stage air assited mast assembly and provides the perfect platform to safely secure a selected portable generator for off-site lighting applications.
LIGHT BOY LED LIGHTING SYSTEM
Gas Shock Absorbers
Gas Shock Absorbers Mast prevents sudden descent. This system protects LED lamps.
Compact
When space is limited but illumination is required, B8CA is the only choice.
Ultimate Lamp Protector
Our LED lamp Protector is made of polycarbonate with a level of durability the same as a riot shield.
Balloon Cover
Balloon Cover is attached to the balloon structure, protecting from dust in the air.
Three Stage Dimming Control
Push the Dimming Control Button and the power will change accordingly. You can save the energy depending on your applications.
Specification
| Model | B8CA | ||
| Voltage (V) | AC90~240 | ||
| Frequency (Hz) | 50/60 | ||
| Current (A) | 3.75(AC230V, 800W) |
||
| Lamp | Type | LED | |
| Dimming Control | 3 Stages : 800W/600W/400W | ||

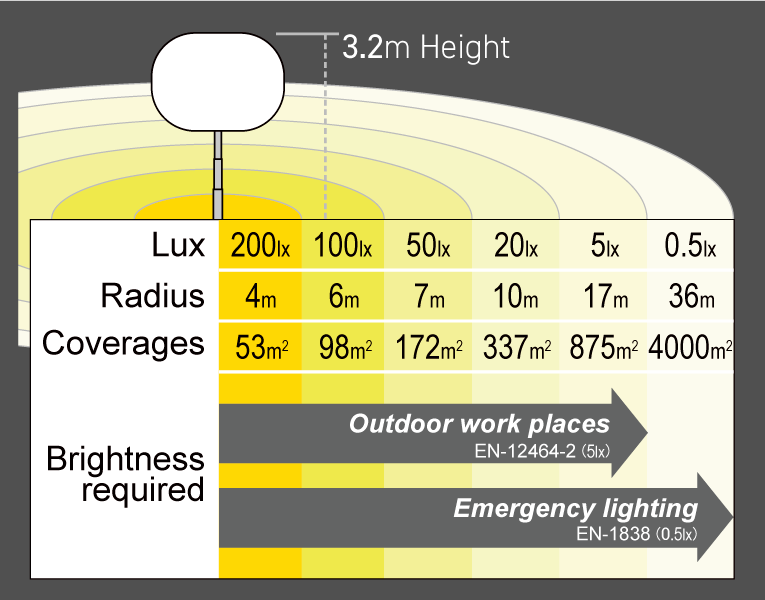

| Total Luminous Flux (lm) | 110,000/90,000/67,000 | ||
| Temperature (℃) | -10~40 | ||
| Mast | Telescopic Aluminum Mast | ||
| Mast Operating | Hand Operation | ||
| Cart | Brake | One Step Foot Brake | |
| Dimension | Operation (L×W×H) (mm) | 1325×1300×1870～3200 | |
| Storage (L×W×H) (mm) | Balloon | 200×220×690 | |
| Cart | 1025×700×845 | ||
| Weight | Balloon (kg) | 10.8 | |
| Cable (kg) | 1.4 | ||
| Mast (kg) | 2.2 | ||
| Cart (kg) | 37.5 | ||
| Total Weight (kg) | 51.9 | ||
| Appropriate Generator | 870W and above | ||
