S3X4CS-A

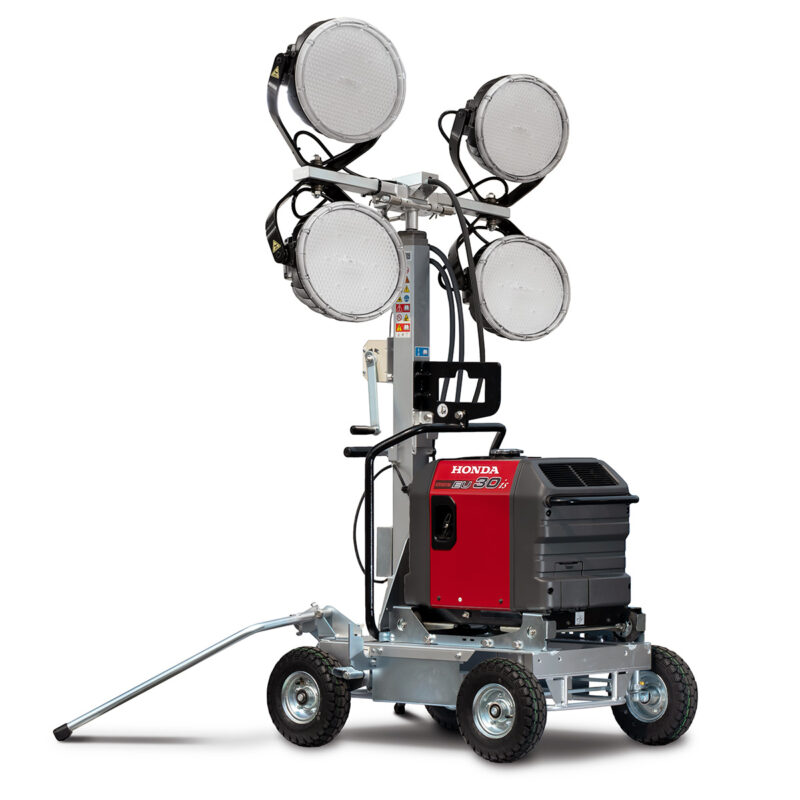

※Shown with a generator for illustration purpose only

LED Spot

S3X4CS-A-CE

  • 4 x 300W LED
  • 212 000 lumen output
  • 4.1m Height
  • Telescopic Mast

The S3X4CS-A-CE lighting system features powerful four-directional lamps that together emit 212 000 lumens, ensuring expansive and bright coverage over large areas. Compact and highly portable, multiple units can be loaded into smaller vehicles, making it an ideal choice for professionals who need versatile, mobile lighting. With custom mounting brackets, it pairs effortlessly with HONDA EU30iS generators, guaranteeing a smooth setup and reliable operation. When high-performance lighting in a convenient, transportable package is needed, the S3X4CS-A-CE stands out for its exceptional brightness and adaptability.

Download Data Sheet
Download User Manual

SPECIFICATION

ModelS3X4CS-A-CE
Voltage (V)AC230
Frequency (Hz)50/60
Wattage (W)1200
LampTypeLED 300W x 4
Total Luminous Flux (lm) 212 000
Temperature (℃)-10~40
MastMast Type3-stage telescopic Mast
Mast OperatingHand Operation
CartTireOuter diameter 300mm pneumatic tires x 4
Tire pressure (kPa)245 - 294 (2.5 - 3.0kgf/cm2
)
BrakeOne-step foot brake
OutriggerRear drawer type x 2

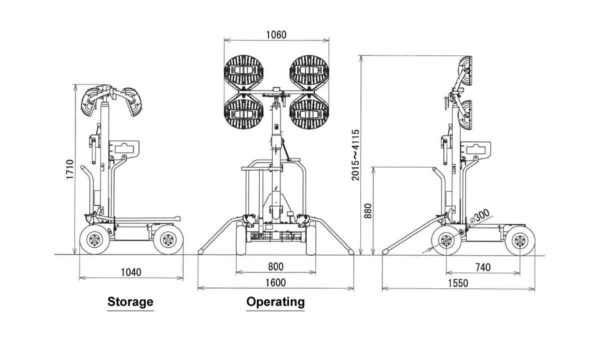

DimensionOperating (LxWxH) (mm)1550x1600x2015-4115
Storage (LxWxH) (mm)Balloon 1060x1040x1710
Plug typeCEE7/7
Total Weight(kg)141
Appropriate GeneratorOutput 1.5kVA or more

Notice: Features and equipment specifications are subject to change without notice.

Improve your SAFETY

Safety Features

Mast Drop Prevention Mechanism

In the unlikely event of an internal wire failure, the integrated safety stopper automatically engages to prevent the mast from collapsing, ensuring the safety of workers and surrounding equipment.

Reverse Winding Prevention Winch

Equipped with an innovative reverse winding prevention mechanism, the winch will not raise the mast if the handle is turned in the wrong direction. Without this feature, incorrect winding could lead to brake failure, causing the mast to drop suddenly and posing a significant safety risk.

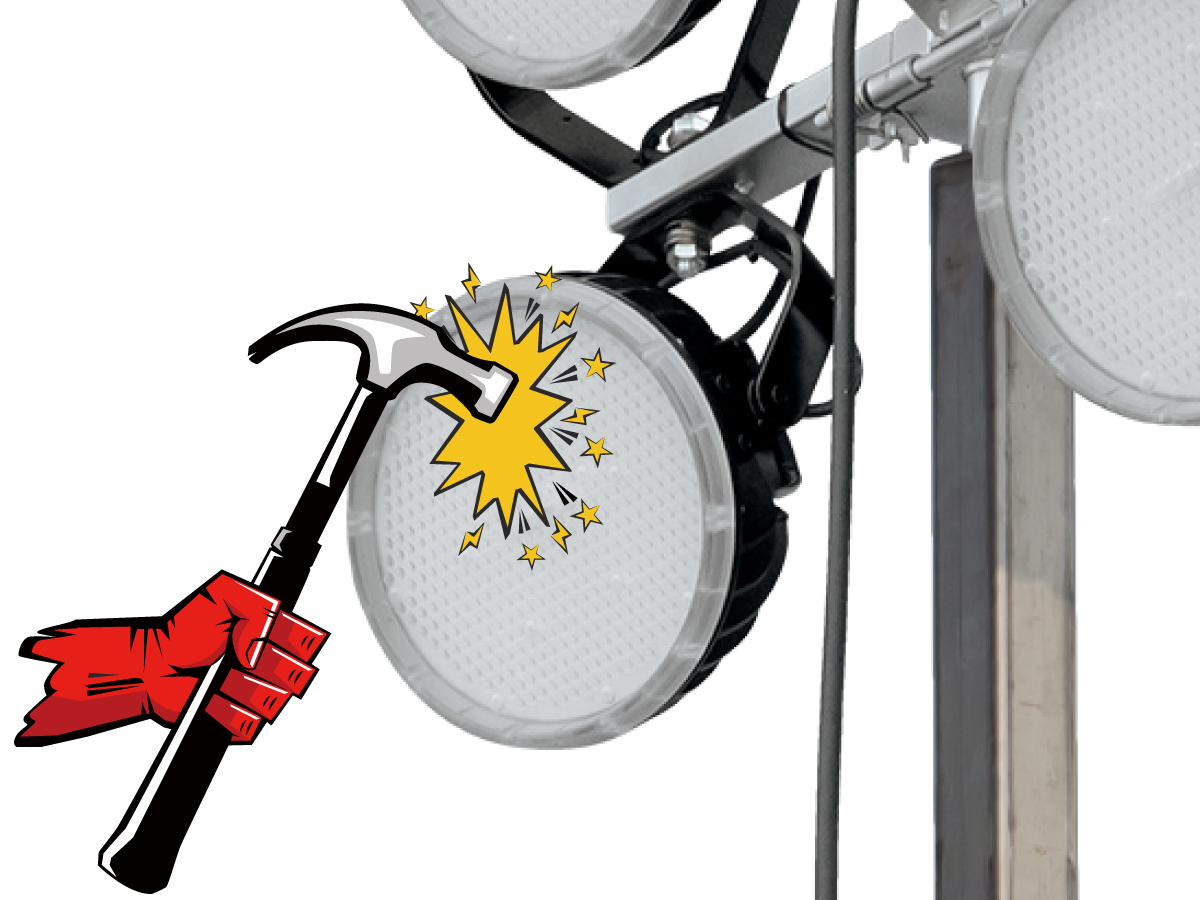

Durable Polycarbonate Cover

A high-strength polycarbonate cover protects the LED unit from impact and water ingress, enhancing durability and ensuring long-term reliability in harsh environments.

Exceptional Operability

Reverse Handle Steering Mechanism

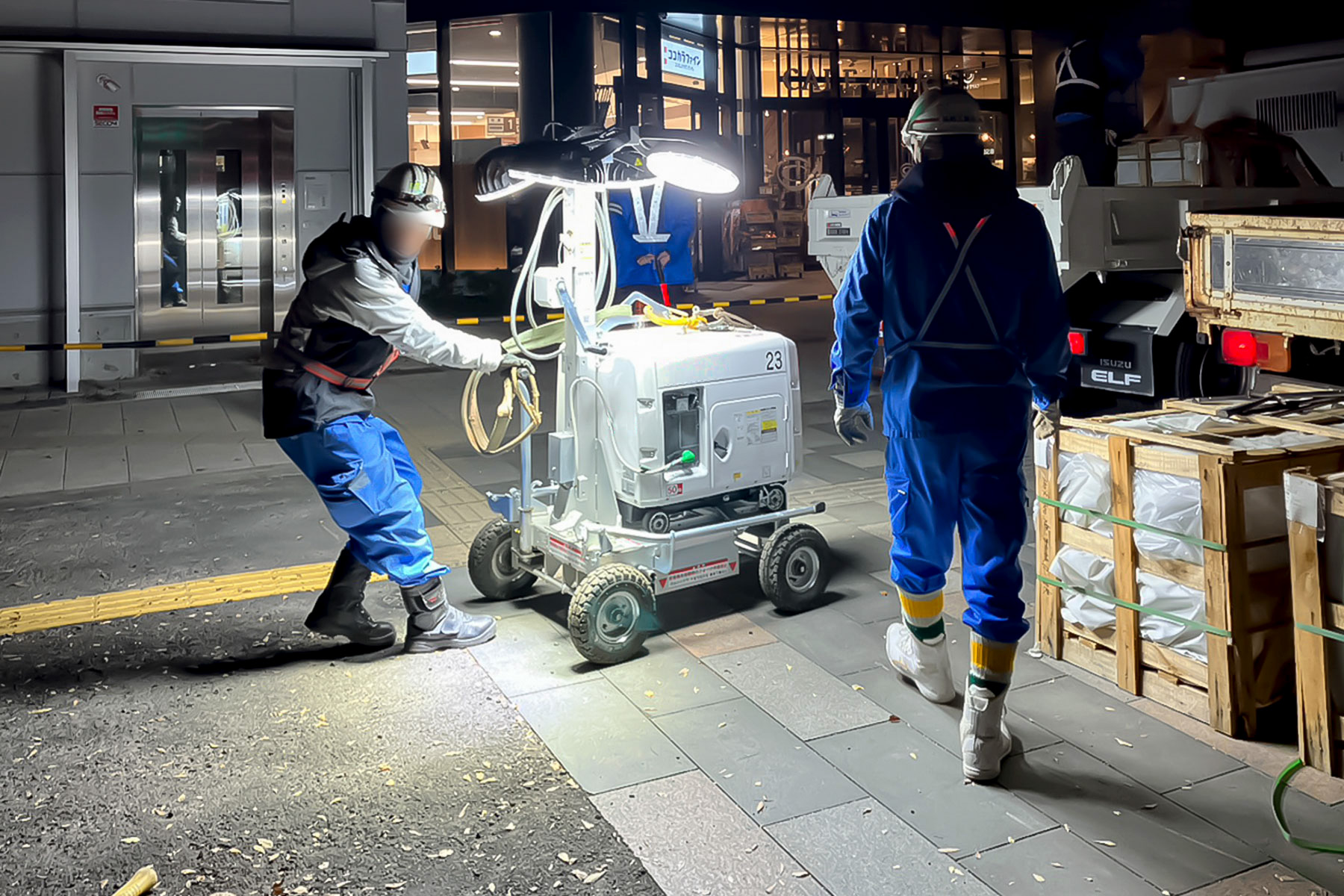

The front-wheel reverse handle system optimizes maneuverability, enabling efficient movement even when transporting heavy equipment. Turning the handle to the right moves the unit to the left, and vice versa, allowing for precise control in confined spaces.

One-Touch Outrigger System

The automatic locking outrigger securely stabilizes the unit upon deployment and can be easily disengaged with a single touch, streamlining setup and takedown procedures.

Dual Rear-Wheel Brake System

A foot-operated parking brake securely locks both rear wheels, preventing unintended movement and enhancing stability on uneven terrain.

Optimized for Convenience

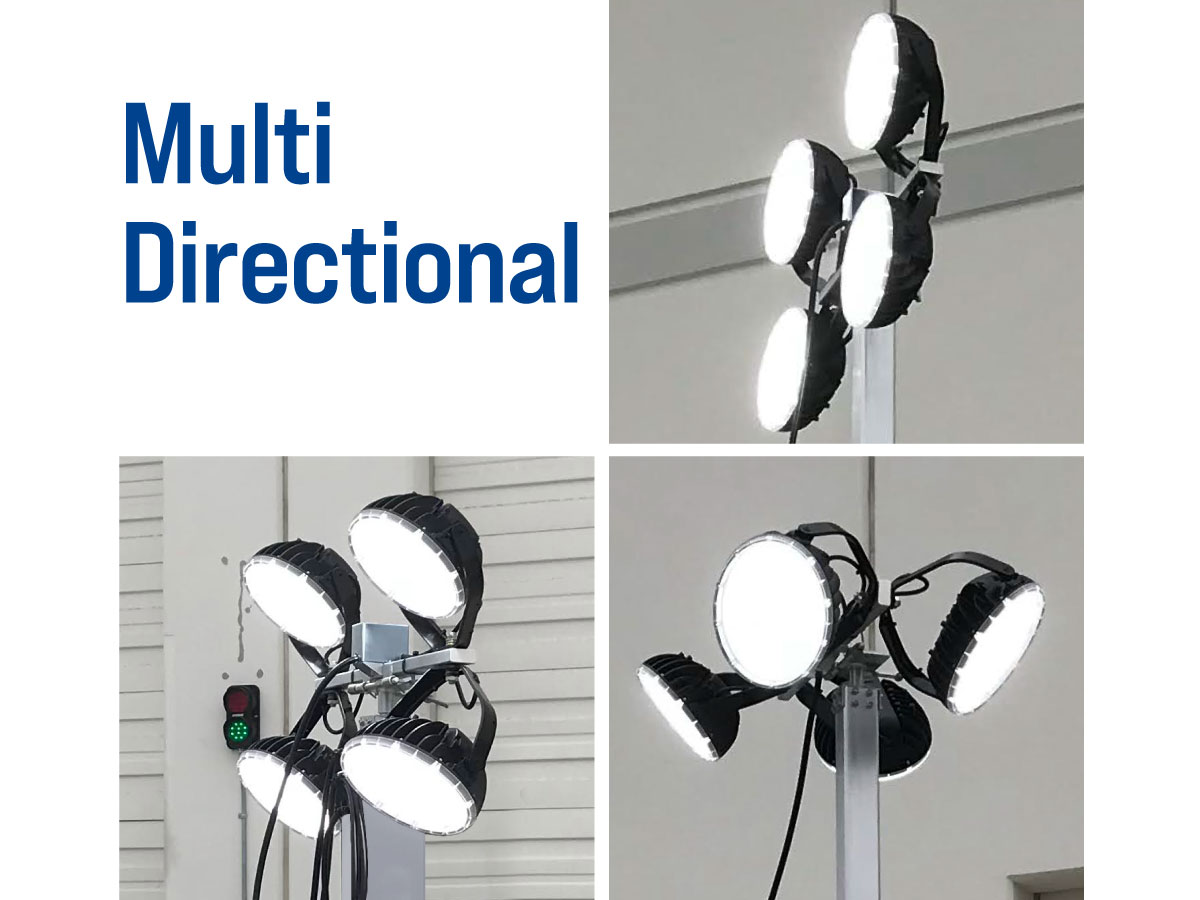

Individually Adjustable Lights for Multi-Directional Illumination

Each lighting fixture can be independently angled, allowing for precise control over illumination direction. By adjusting the orientation of each fixture, the S3X4CS-CE can simultaneously illuminate multiple areas, enhancing coverage and flexibility for various worksite conditions.

Easy Maintenance with Grease Nipples

Strategically placed grease nipples at the wheel axle and handle base allow for quick and hassle-free lubrication, ensuring smooth operation and extending the lifespan of key components.

Forklift-Compatible Design

Designed for efficient transportation, the unit can be lifted from two sides using a forklift. The pocket also functions as a lifting eye, allowing for faster and more flexible loading and unloading compared to crane-based handling.

Option

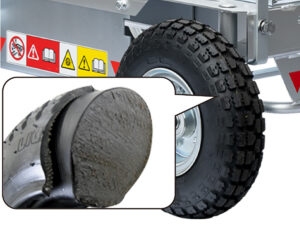

No Puncture Tire

Airless tyres without punctures.
